15 Ports of Pure Connectivity

What sets the TS5 apart from the rest?

15 Ports

120Gb/s

3 Displays

2.5GbE

140W Charging

15 Ports

140W Laptop Charging

120Gb/s

3 Displays

2.5GbE

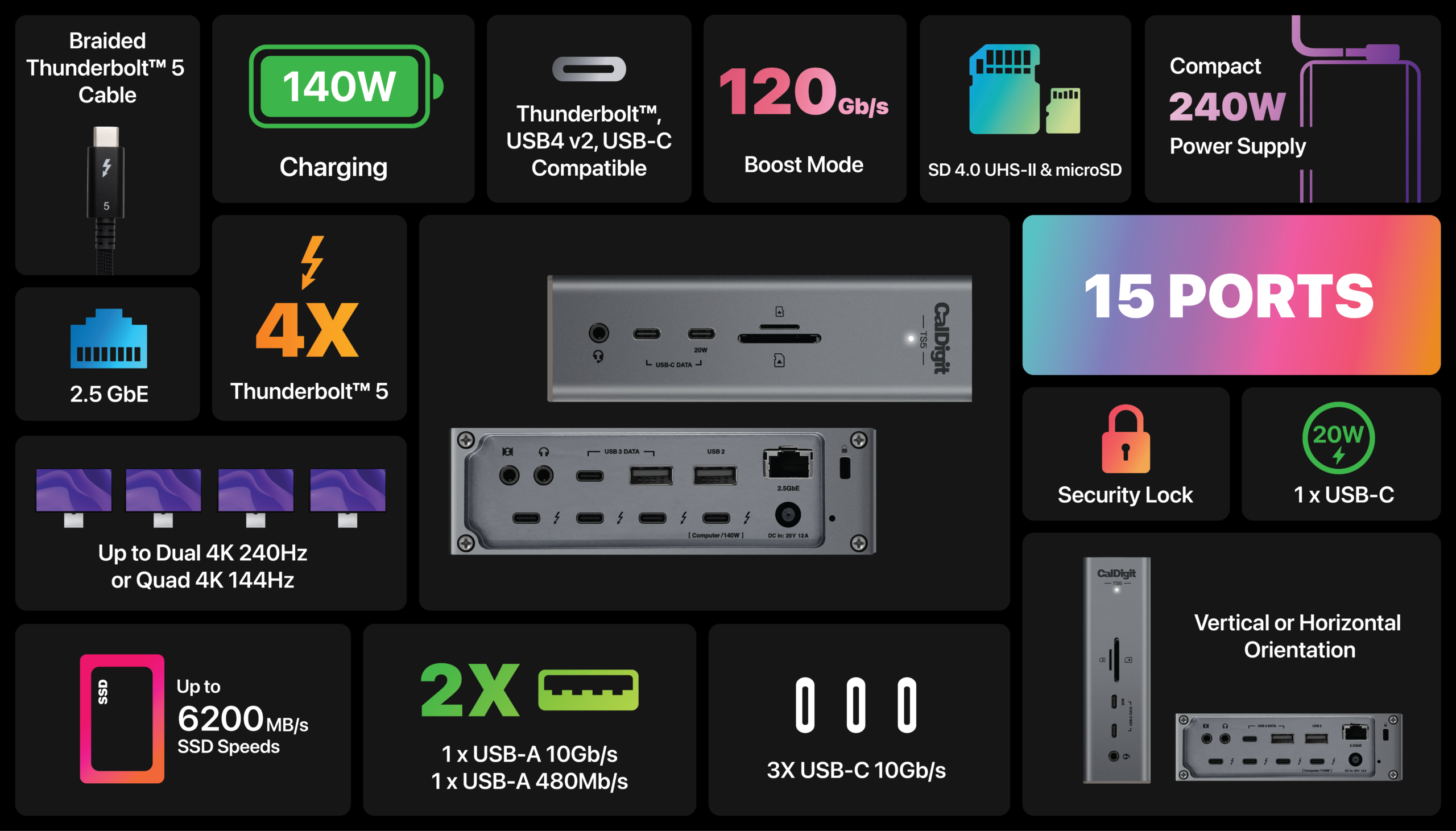

All About The Ports

The TS5 is built from the ground up with connectivity in mind. It is packed full of essential ports ready to take your workflow to the next level.

This dock features a combined total of 15 ports, including four Thunderbolt 5 80Gb/s ports. In addition to all of this connectivity the TS5 will charge your laptop up to 140W.

Pure

Connectivity.

Up to 120Gb/s

More power than ever before

Three Displays on Windows

Triple your productivity on Windows Thunderbolt 5

140W Charging

Charge your laptop or tablet faster than ever

2.5GbE Performance

2.5x the speed of traditional 1GbE

64Gb/s PCIe for lightning fast SSD speeds

Two times the performance of 32Gb/s PCIe

4X Thunderbolt 5 Ports

Powerful connectivity to expand workflows

BIG ON PORTS.

Delivering 15 ports, all of which can be used at the same time, this dock packs all the ports most of us would ever need.

TS5 Unboxing & Overview

Get Connected

The TS5 is compatible with Thunderbolt 5, Thunderbolt 4, Thunderbolt 3, USB4, USB4 v2, and USB-C host computers.

M1/M2/M3/M4 Pro, M1/M2/M3/M4 Max & M1/M2/M3 Ultra Mac¹
M1/M2/M3/M4 Mac¹
Thunderbolt 5 PC
Thunderbolt 4 PC
Thunderbolt 3 Mac
USB4 & USB4 v2 PC
Intel Thunderbolt 3 Mac¹
USB-C Mac or PC
Thunderbolt iPad²
Thunderbolt Chromebook

¹ Requires macOS 15 or above.
² Functionality is dependent on host computer or tablet’s capabilities.

*To get the maximum performance & features from the TS5 an 80Gb/s Thunderbolt 5 or USB4 v2 host connection is required.

140W Power Delivery

The TS5 provides up to 140W power delivery for even the most demanding laptops. This makes it ideal for laptops like the 16″ MacBook Pro with M4 Pro or M4 Max chips which require 140W.

Whilst many other Thunderbolt 5 docks state that they can charge at up to a certain wattage, they actually include an insufficient power supply. These docks will allocate host power based on how many devices are connected to them. Some of the host power will move to newly attached devices, thereby reducing the power delivery.

Rest assured that the CalDigit TS5’s power supply will always provide the full 140W power delivery, and will never drop that performance even when new devices are connected to the TS5.

For laptops or tablets that require less than 140W, the TS5 will only supply the wattage required by your device.

Dock	Laptop Charging
TS5	140W
TS5 Plus	140W
TS4	98W

Thunderbolt 5

The TS5 features four 80Gb/s bi-directional Thunderbolt 5 ports, which are double the performance of Thunderbolt 4.

The PCIe performance of the the Thunderbolt ports have been doubled from the previous generation to 64Gb/s PCIe 4.0. This is ideal if you are intending on connecting high performance SSDs or RAID devices to the TS5. This powerful dock will support transfer speeds up to 6,200MB/s.

	TS5	TS4
Max. External Storage Performance	Up to 6,200MB/s*	3,200MB/s
Performance Difference	2x Faster	2x Slower

5 Powerful USB Ports

The TS5 features 5 USB ports in order to attach multiple accessories to the dock*.

Four of the USB ports on the TS5 offer 10Gb/s performance, and one of the USB-A ports provides USB 2.0 performance for keyboards or mice.

*USB-C & USB-A ports are for data only. Monitors must be connected to the spare Thunderbolt 5/USB4 v2 ports.

20W USB-C Port

One of the the front-facing USB-C ports features 20W in order to provide more power for accessories.

This is ideal for devices that require more than 7.5W of USB power such as an iPhone, Apple Watch, and iPad Pro.

Device	Charging Rate
iPhone 16	20W
iPad Pro 13"	20W
Apple Watch	18W

Single, Dual, or Three Displays

Whether you need a high-resolution display, a high-refresh rate display, or up to 3 external displays, the TS5 has you covered.

Single Monitor

If you’re looking to add a single monitor to the TS5 you can connect it to one of the spare Thunderbolt 5 ports. If you wish to connect an HDMI monitor you can use a USB-C to HDMI Adapter ***.

Dual Monitors

Triple Monitors

* Dual 5K monitors must be Thunderbolt 4 or Apple Studio Displays. Dual LG UltraFine 5K monitors are not supported. 6K monitors can be a Thunderbolt 4 monitor or an Apple Pro Display XDR. DSC (Display Stream Compression) support is required for 6K and 8K resolutions.

** Higher refresh-rates (above 60Hz) may require DSC (Display Stream Compression) support on the monitors and host GPU. The bit/color depth may vary in order to support higher refresh-rates.

*** Some M3 MacBooks such as the MacBook Air can support dual external monitors up to 5K and 6K when the laptop lid is closed (clamshell mode).

**** Currently M1/2/3/4 Macs can only support up to HDMI 2.0b over their Thunderbolt ports. As such, resolutions will be limited to 4K 60Hz when using an HDMI adapter. If a higher refresh-rate is required, please use a USB-C to USB-C or USB-C to DisplayPort connection. For more information about a Mac’s external display support please visit https://support.apple.com/en-us/101571 and https://www.caldigit.com/macbook-multiple-monitor-support-with-caldigit-thunderbolt-docks/

***** Results may vary due to OS updates. For external display compatibility over a single Thunderbolt connection on different Windows computers, please refer to the manufacturer’s website.

Bandwidth Boost

When you connect bandwidth intensive monitors to the TS5 it will enable Bandwidth Boost in order to prioritize displays, and provide up to 120Gb/s performance. This will then keep 40Gb/s for the rest of the dock.

The great thing about this is that it will allow for higher refresh rate displays to be connected to the TS5, as well as three 4K 144Hz displays.

3 Monitors on Windows

Thunderbolt 5 allows for 3 external monitors to be connected to a Windows Thunderbolt 5 host computer that supports it. Connect three monitors to the downstream Thunderbolt 5 ports*.

*Triple displays requires a compatible Thunderbolt 5 Windows PC. M4 Apple Macs do not support triple displays via a single Thunderbolt 5 host connection. Thunderbolt 4 Windows or Mac host computers do not support triple displays.

2.5 Gigabit Ethernet

The TS5 features a 2.5 Gigabit Ethernet port for outstanding performance.*

2.5GbE is 2.5x faster than traditional Gigabit Ethernet, and is becoming the new standard for routers, switches, and NAS devices.*

Of course you can use the 2.5GbE port on the TS5 with traditional 1GbE Ethernet devices.

*Ethernet is only supported on Thunderbolt based hosts as well as USB4 hosts that support PCIe. Please contact your USB4 host manufacturers for PCIe support information.

Tablets & Phones

Connect the TS5 to your Thunderbolt iPad, or Windows Thunderbolt tablet, and take your workflow to the next level.

The TS5 is also compatible with USB-C Tablets and iPhones.

*Full tablet functionality will be dependent on your tablet’s capabilities. Overall functionality will be reduced when using a tablet or phone as a host device.

SD & microSD 4.0 UHS-II

The TS5 features both microSD and SD card readers on the front of the device for easy access. Both ports offer UHS-II performance and can be used at the same time.

8 Offline Charging Ports

All of the USB 10Gb/s ports and all of the Thunderbolt ports on the TS5 provide offline charging. 8 Ports in total.

This function allows those specific ports the ability to charge your USB devices, such as phones and tablets, even when the TS5 is not connected to a host device.

*The rear USB 2.0 port does not provide offline charging functionality.

Apple SuperDrive

Devices such as the Apple SuperDrive are recommended by Apple to be directly connected to a laptop as they require extra power. CalDigit has developed a driver for the SuperDrive so that it can be directly connected to the TS5.

*Requires a one-time driver install.

Rear Host Port

Most generic Thunderbolt docks feature a front host Thunderbolt port which results in messy cable management.

The The TS5′ unique rear Thunderbolt 5 host port features a more elegant solution for a clean desktop experience.

Docking Station Utility

Individually disconnecting all the external drives connected to a dock can be a hassle.

To solve this CalDigit includes a free macOS utility that allows you to instantly disconnect all of your connected external drives with one click*.

*Requires a one-time software install. macOS only.

*Some of the above features will vary depending on the OS and host computer’s capabilities.

PRODUCT OVERVIEW

Download Product Images

Learn more about CalDigit's Legacy of Docking Solutions

Watch the TS5 set up Video

Watch the TS5 Top 10 FAQ Video

Technical Specifications
Compare TS4, TS5 & TS5 Plus
FAQ

Interface

1 x Thunderbolt 5 Host (Up to 120Gb/s)
3 x Thunderbolt 5 (80Gb/s)
3 x USB-C (10Gb/s)
1 x USB-A (10Gb/s)
1 x USB-A (480MB/s)
1 x SD 4.0 (UHS-II)
1 x microSD 4.0 (UHS-II)
1 x 2.5 Gigabit Ethernet
1 x Front Combo Audio In/Out (3.5mm)
1 x Rear Audio Out (3.5mm)
1 x Rear Audio In (3.5mm)
1 x DC In (20V 12A)

Minimum System Requirements

macOS 15 or above
Windows 10/11 or above
iPadOS
Chrome OS
Thunderbolt 5 Computer
Thunderbolt 4 Computer
Thunderbolt 3 Mac
USB-C (USB4 or USB4 v2) Computer
USB-C Mac, PC, Tablet, Phone
Thunderbolt/USB4 iPad

Power Delivery

Thunderbolt 5/USB4 Host Port: Up to 140W
Each Downstream Thunderbolt 4/USB4 Port: 15W
Front 20W USB-C Port: 20W
Remaining USB-C Ports: 7.5W
USB-A Ports: 7.5W

Size & Weight

Height: 5.55” (141.0mm)
Width: 1.65” (42.0mm)
Length: 4.46” (113.4mm)
Weight: 1.41lbs (0.64kg)

In the Box

1 x CalDigit TS5
1 x Thunderbolt 5 Braided Cable (1.0m)
2 x Rubber Feet Strips
1 x Power Cord
1 x Power Supply (240W)

Warranty

2 Years

	TS4	TS5	TS5 Plus
Color	Space Gray	Space Gray	Space Black
Max. Performance	40Gb/s	120Gb/s	120Gb/s
No. Ports	19	15	20
Host Charging	98W	140W	140W
Max. PCI Express Bandwidth	32Gb/s	64Gb/s	64Gb/s
Three 4K 60Hz Displays (On Supported Thunderbolt 5 Windows PCs)	X	✓	✓
Dual 4K 240Hz Displays	X	✓	✓
Dual 6K 60Hz Displays	✓	✓	✓
Thunderbolt Ports	3 x 40Gb/s	4 x 80Gb/s	3 x 80Gb/s
Thunderbolt Downstream Port Charging	15W	15W	36W
USB 2.0 USB-A	X	1x	X
USB 3.2 10Gb/s USB-A	5x	2x	5x
USB 3.2 10Gb/s USB-C	3x	3x	5x
Dual USB 10Gb/s controllers	X	X	✓
Front 20W USB-C Port	✓	✓	X
Front 36W USB-C Port	X	X	✓
Supports USB 20Gb/s Data Path (On Supported Thunderbolt 5 Windows PCs)	X	✓	✓
DisplayPort Interface	1x	X	1x
DisplayPort Version	1.4	2.1	2.1
Ethernet (PCIe base)	2.5GbE	2.5GbE	10GbE
Chassis Dimension	5.55” x 1.65” x 4.46”	5.55” x 1.65” x 4.46”	6.10” x 1.85” x 5.03”
Power Supply	230W	240W	330W
Price	$379.99	$369.99	$499.99

What is the minimum macOS specification required to use the TS5?

macOS 15 and above.

What is the minimum Windows OS specification required to use the TS5?

Windows 11 and above.

Does the TS5 work with USB-C host devices?

Yes, the TS5 is fully compatible with USB-C host devices.

Does the TS5 work on a Thunderbolt 4 or Thunderbolt 3 computer?

Yes, the TS5 is compatible with Thunderbolt 3 or Thunderbolt 4 Macs, and Thunderbolt 4 PCs.

Does the TS5 work on a Mac featuring the M1-M3, M1-M4 Pro, M1-M4 Max, M1-M4 Max, and M1-M3 Ultra?

Yes, the TS5 is the perfect companion for the above Apple Silicon Macs.

Base M1-M3 Macs only support a single display through the Thunderbolt connection.

Pro, Max, M4 base, and Ultra Mac users can connect dual displays to the TS5.

Three displays are not supported through a dock or hub on M4 Thunderbolt 5 Macs via a single Thunderbolt 5 connection.

Does the TS5 work with a USB4 or USB4 v2 computer?

Yes, the TS5 works with computers that are USB4 or USB4 v2, and can support PCIe over USB4.

What is Bandwidth Boost?

A new feature of Thunderbolt 5 is called Bandwidth Boost, and it allows the TS5 to allocate more performance when you connect bandwidth intensive displays to the dock, such as high-refresh rate displays, or multiple high-resolution displays. It will allocate up to 120Gb/s to the displays, and leave 40Gb/s for the rest of the dock.

How do I connect a single monitor to the TS5?

Option 1 (DisplayPort Monitor)
Connect a USB-C to DisplayPort Video Adapter (sold separately) to one of the spare Thunderbolt 5 ports.

Option 2 (Thunderbolt Monitor)
Directly connect a Thunderbolt monitor to one of the spare Thunderbolt 5 ports on the TS5.

Option 3 (USB-C Monitor)
Directly connect a USB-C monitor to one of the spare Thunderbolt 5 ports on the TS5.

Option 4 (HDMI Monitor)
Connect a USB-C to HDMI Video Adapter (sold separately) to one of the spare Thunderbolt 5 ports.

How do I connect dual monitors to the TS5?

Option 1

– Connect one monitor to one of the spare Thunderbolt 5 ports via a USB-C Video Adapter (sold separately).
– Connect the second monitor to one of the spare Thunderbolt 5 ports via a USB-C Video Adapter (sold separately).

Option 2

– Connect two USB-C or Thunderbolt monitors directly to two of the Thunderbolt 5 ports.

How do I connect three monitors to the TS5 (Windows Thunderbolt 5 Only)?

Either directly connect three Thunderbolt or USB-C monitors to three of the spare Thunderbolt 5 ports on the TS5, or connect three USB-C Video Adapters (sold separately) to the three spare Thunderbolt 5 ports on the TS5.

Is the TS5 fully compatible with the Apple Pro Display XDR at full resolution?

Yes, you can directly connect the Apple Pro Display XDR to one of the spare Thunderbolt 5 ports and output at full 6K resolution.

What is the maximum laptop charging capability of the TS5?

140W.

If the Host Thunderbolt 5 port charges at 140W what do the Downstream Thunderbolt 5 ports charge at?

The two downstream Thunderbolt 5 ports charge at 15W each.

If my laptop charges at less than 140W does the TS5 scale down the charging?

Yes, if your laptop charges at less than 140W, the TS5 will only supply the amount of power your laptop requires.

If I am using a computer that doesn’t require power from a dock, such as the M4 Mac mini, does the TS5 still supply power?

If your are using a Mac mini, iMac, or desktop computer the TS5 will not supply power via the Thunderbolt 5 connection.

Can I use all 5 USB ports on the TS5 at the same time?

Yes, you can use all the ports on the TS5 at the same time.

Why does the front USB-C port charge at 20W?

The front 20W USB-C port is ideal for use with USB-C devices that require more power.

Can I use both the SD and microSD card readers at the same time?

Yes, both card readers can be use at the same time.

Can I use both audio outputs at the same time?

No. When two audio outputs are connected, the system will default to the front audio output. You can only use one audio output at a time.

What cables can I use with the TS5?

For the optimal compatibility we recommend to use certified 80Gb/s Thunderbolt 5 cables with 240W power delivery.
